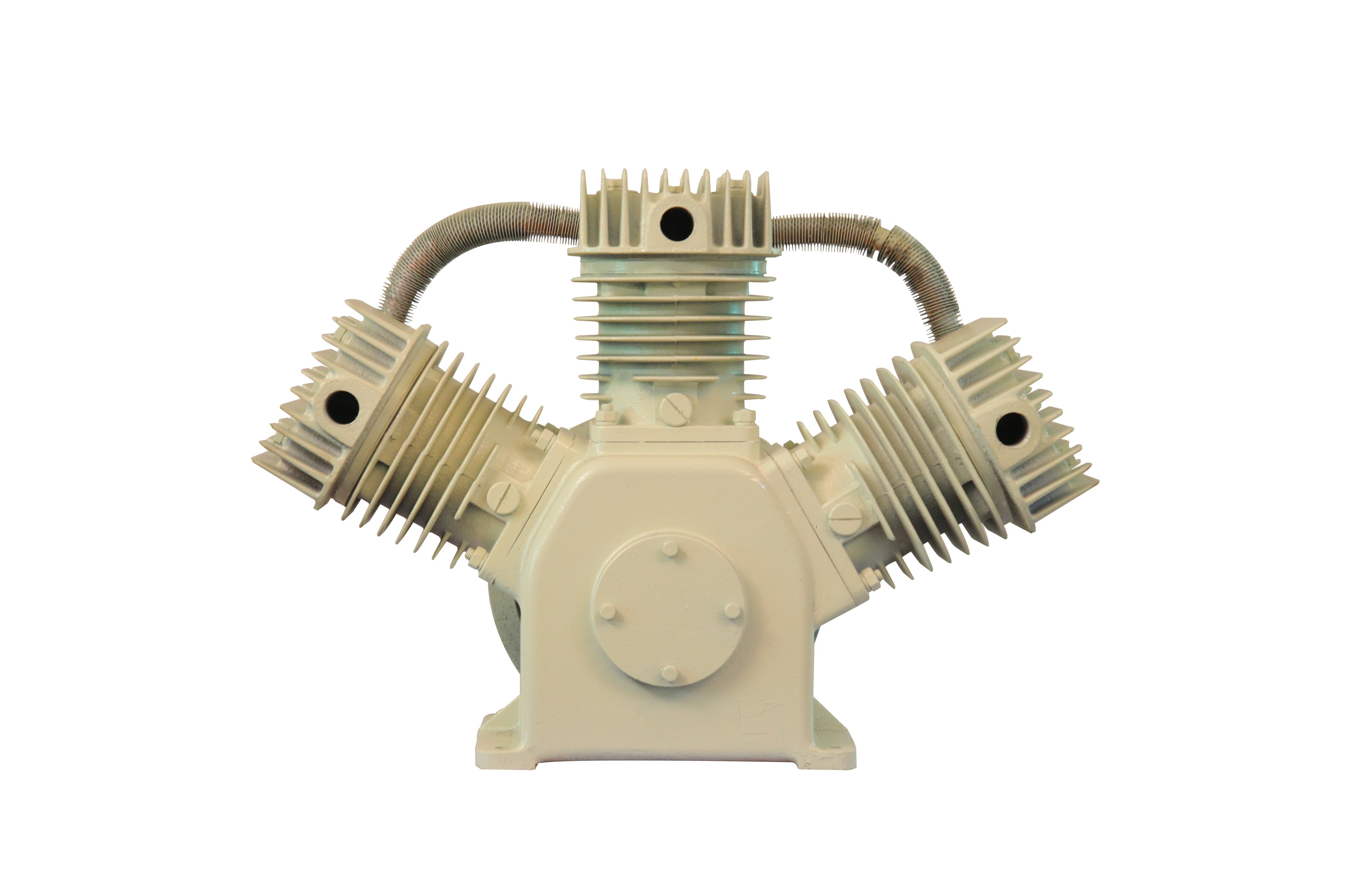

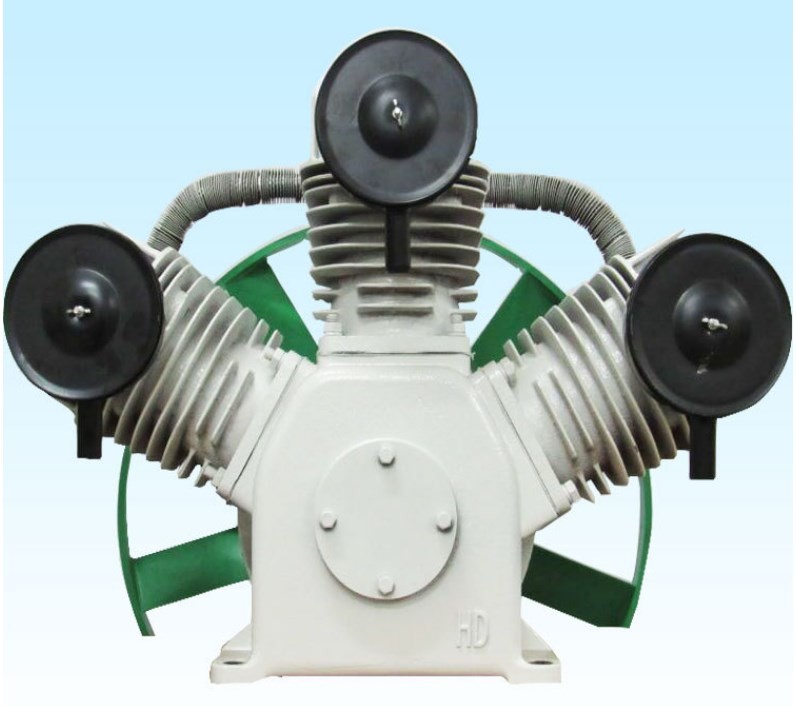

11KW/15HP Reciprocating Oil Free Piston Air Compressor Head Belt Driven

  • 11KW/15HP Reciprocating Oil Free Piston Air Compressor Head Belt Driven
  • 11KW/15HP Reciprocating Oil Free Piston Air Compressor Head Belt Driven
Menşe yeri Çin
Marka adı OEM
Sertifika CE
Model numarası DV-3120
Min sipariş miktarı 500
Fiyat USD 40-45
Ambalaj bilgileri ambalaj boyutu (U × G × Y): 650mm × 500mm × 455mm
Teslim süresi 7 GÜN
Yetenek temini 500 Adet / Gün

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
İsim 11KW/15HP Kayış Tahrikli Pistonlu Yağsız Pistonlu Hava Kompresörü Kafası Hava dağıtımı 0.6m³/dak
silindir 120mm*3 baskı yapmak 1.6Mpa/115psi
N. tartmak 25kg Ölçü(mm) 600*470*355
Hız 930 rpm Güç 11KW/ 15 HP
Vurgulamak

11KW pistonlu hava kompresörü başı

,

15HP pistonlu hava kompresörü başı
Mesaj bırakın
Ürün Açıklaması

11KW/15HP Reciprocating Oil Free Piston Air Compressor Head Belt Driven



Product Description



1.The motor adopts copper coil, so that the compressor can achieve high power, high efficiency and high performance
2.Piston ring friction coefficient is small, self-lubricating
3.Cylinder sleeve surface hardening process, greatly reduce the thickness, speed up the heat transfer; Increased surface compactness and reduced friction coefficient, thus increasing service life;
4.Intake and exhaust valves adopt reasonable muffling design, which greatly increases volume efficiency and makes low noise.
5.The whole machine design considerate, mobile flexible, simple operation, convenient maintenance





11KW/15HP Reciprocating Oil Free Piston Air Compressor Head Belt Driven 0







Technical parameters



MODEL: DV-3120
Power(Kw/Hp): 11kw/15HP
Cylinder dia×No.(mm): 120×3
Speed(rpm): 1.6
Air Delivery(L/Min/m³/Min): 360/0.6
Voltage/Frequency(V/Hz): 220/50
Max Pressure(psi/bar): 115/8
Weight(Kg): 35
Dimension(L×W×Hmm): 650×550×455





Packaging & Shipping

Packaging Details
Standard export carton or plywood case 1pcs/box
Port
Shanghai/Ningbo



11KW/15HP Reciprocating Oil Free Piston Air Compressor Head Belt Driven 1

Our services



1.We promise to reply your inquiry relational our product within 24hours.

2.OEM&ODM service for your unique idea with absolutely convenient.

3.Experienced foreign trader with professional product knowledge.

4.Value on business credite , promise to protect your sales data, design,patent information.

5. Sample & OEM service is available

6. After-sales service. any question will be settled within 3 days



FAQ



1.Are you a factory or trading company?

A: Our company is a professional manufacturer and trader that is concerned with the design,development
and production
2. What is your delivery time?
A: 15 days for sample order, 30 days for container order. ( Busy season may need more days )
3. How long does delivery take?
A: After receive the deposit:
- Sample order:within 10-15 days;
- 20FT container: 20-25 days;
- 40HQ container: 30-35 days
4. Is OEM acceptable?
A:Yes. In addition to the stable products,OEM & ODM accepted. Please contact us for details.
