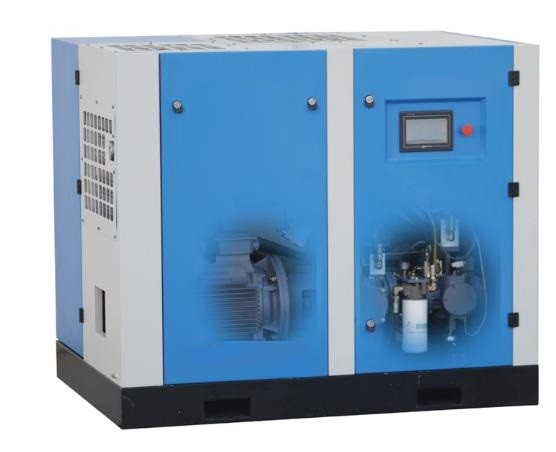

63dB Screw Drive Air Compressor Small 750KGS High Reliability

  • 63dB Screw Drive Air Compressor Small 750KGS High Reliability
  • 63dB Screw Drive Air Compressor Small 750KGS High Reliability
  • 63dB Screw Drive Air Compressor Small 750KGS High Reliability
Menşe yeri Çin
Marka adı OEM
Sertifika CE
Model numarası CHIC-15BF / 10
Min sipariş miktarı 1
Ambalaj bilgileri ambalaj boyutu (L × G × Y) ： 1600mm × 1000mm × 1335mm
Teslim süresi 7 gün
Yetenek temini 500pcs / GÜN

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
ad CHIC-15BF / 10 10Bar Doğrudan Tahrikli Kullanılmış Döner Yağsız Vidalı Hava Kompresörü Hava dağıtımı 2.12 m³ / dakika
elektrik Üç fazlı 380/60 veya 440/60 (V // Hz) Basınç 10 bar '
Gürültü seviyesi 63dB güç 20HP / 15KW
N. ağırlık 750kgs renk Mavi
Vurgulamak

63dB screw drive air compressor

,

750KGS screw drive air compressor

,

63dB small scroll air compressor
Mesaj bırakın
Ürün Açıklaması





CHIC screw compressor adopts frequency conversion motor, with wide speed range, strong lower torque reduction and good stability.

CHIC screw compressor adopts special inverter compressor, high reliability, continuous long.

Energy saving: energy saving more than 15% compared with dry oil-free compressor.

Environment protection: no using any lubricate oil to avoid environment pollution.

Reliability: absolutely guarantee oil-free.

oil-free compressed air, purified compressed air, no oil pollution risk.

Technical parameters of oil-free screw air compressor of water lubrication of CHIC series



 63dB Screw Drive Air Compressor Small 750KGS High Reliability 0



Technical parameters



Model CHIC-15BF/10
Power 20HP/15KW
FAD: (M3/MIN) 2.12
Pressure 10 bar
Cooling Air-cooling
Noise level 63dB
Drive method Direct drive type
Discharge temperature Environment temp+15℃
Electricity Three phase 380/60 or 440/60 (V//Hz)
Air outlet: Pipe diameter(inch) R1
delivery 15-20 days
Dimension 1680MM*1000MM*1335MM
Net weight 750KGS


Packaging & Shipping


Packaging Details
Standard export carton or plywood case 1pcs/box
Port
Shanghai/Ningbo



63dB Screw Drive Air Compressor Small 750KGS High Reliability 1

Our services



1.We promise to reply your inquiry relational our product within 24hours.

2.OEM&ODM service for your unique idea with absolutely convenient.

3.Experienced foreign trader with professional product knowledge.

4.Value on business credite , promise to protect your sales data, design,patent information.

5. Sample & OEM service is available

6. After-sales service. any question will be settled within 3 days



FAQ



Q1. Are you a factory?
A. Yes, We are professional air compressor factory with more than 10 years experience.

Q2. How can i get a quotation?
A. Leave us message with your purchase requemets and we will reply you within one hour on working time. And you may contact us directly by Trade Manager

Q3. How many design do you have? How can i get your catalog?
A. We have hundreds of advanced design for your choice , And we have new design every year. Just tell us what kind of product you need and we will provide you plenty of choice,

Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.

Q5. What's the delivery time and what's the package?
A. Normally the delivery time is about 25-35 days, Al our products are packed with sea worthy package.
