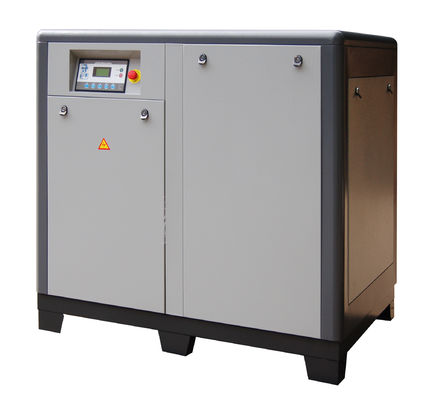

22Kw Variable Speed Screw Compressor Rotary 440v Single Stage

  • 22Kw Variable Speed Screw Compressor Rotary 440v Single Stage
  • 22Kw Variable Speed Screw Compressor Rotary 440v Single Stage
Place of Origin CHINA
Marka adı CHIC
Model Number CHIC-30A
Minimum Order Quantity 1PC
Fiyat USD1200.00-USD2000.00
Packaging Details Standard export packing size: 860×1115×1340mm
Payment Terms T/T, L/C

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Vurgulamak

22Kw variable speed screw compressor

,

440v variable speed screw compressor

,

440v rotary type air compressor
Mesaj bırakın
Ürün Açıklaması

Compressor Belt Screw Air Compressor Factory 22Kw 8Bar Belt Drive Screw Air Compressor

22Kw Variable Speed Screw Compressor Rotary 440v Single Stage 022Kw Variable Speed Screw Compressor Rotary 440v Single Stage 1



Model CHIC-30A

Air Delivery(m³/min/Mpa)

3.8/0.7;3.6/0.8; 3.3/1.0; 2.9/1.2
Power (kw) 22kw
Motor

380v 220v 440v/3/50HZ , 60HZ

Stage

Single Stage

Ambient Temperature(℃)

≤45℃

Cooling Way

Air Cooling

Exhaust Temperature(℃)

≤Ambient Temperature +15℃

Driven Way

Multivee belt

Start Way

Y-△/soft Start/Inverter Start

Volume of Lubrication(L)

  15

Nose(ab)

  ≤72

Oil content of air

  <2ppm

Diameter of outlet(inch)

  G1″

Meas(length x Width x highmm)

  860×1115×1340
